190501-11-00-04 Bently Nevada Velomitor CT Transducer

Name: 190501-11-00-04 Bently Nevada Velomitor CT Transducer
Brand: MOORE AUTOMATION LIMITED
SKU: 190501-11-00-04
Availability: InStock

Λεπτομέρειες προϊόντων:

Τόπος καταγωγής:	ΗΠΑ
Μάρκα:	Bently Nevada
Πιστοποίηση:	CO.CQ
Αριθμό μοντέλου:	190501-11-00-04

Πληροφορίες λεπτομέρειας

Τόπος καταγωγής:

ΗΠΑ

Μάρκα:

Bently Nevada

Πιστοποίηση:

CO.CQ

Αριθμό μοντέλου:

190501-11-00-04

Περιγραφή:

Αισθητήρας Velomitor CT

Αριθμός μέρους:

190501-11-00-04

Μάρκα:

Φέρλο Νεβάδα

Παρασκευή:

2020

Εφαρμογή:

Πυρηνικός σταθμός

Χρόνος μολύβδου:

Σε απόθεμα

Βάρος:

4 κιλά

Επισημαίνω:

High Light

Επισημαίνω:

Bently Nevada Velomitor CT transducer

3500 System vibration transducer

Bently Nevada transducer with warranty

Πληροφορίες συναλλαγών

Ποσότητα παραγγελίας min:

Τιμή:

inquiry

Συσκευασία λεπτομέρειες:

Νέο και πρωτότυπο με εργοστάσιο σφραγισμένο

Χρόνος παράδοσης:

σήμερα

Όροι πληρωμής:

T/t

Δυνατότητα προσφοράς:

10 κομμάτια την ημέρα

Περιγραφή του προϊόντος

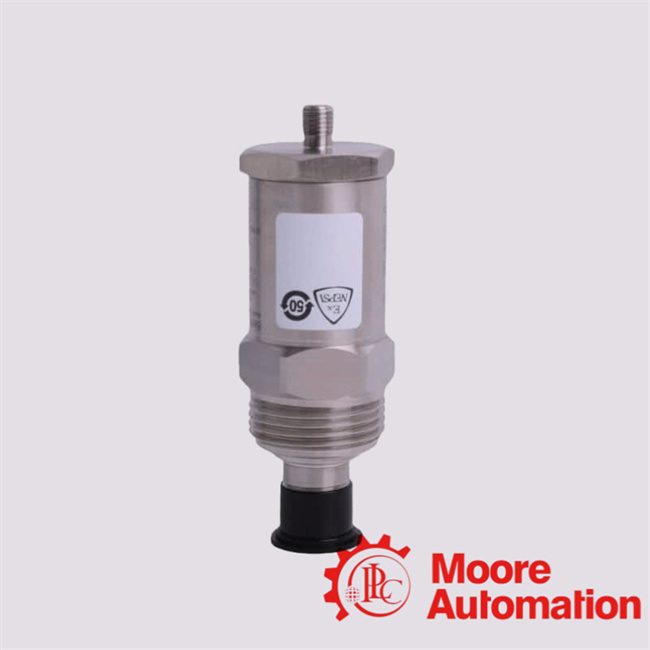

190501-11-00-04 Bently Nevada Velomitor CT Transducer

`Description`

The 190501-series “Velomitor CT” by Bently Nevada is a low-frequency piezoelectric velocity transducer designed to measure casing

vibration velocity in equipment such as cooling towers and air-cooled heat-exchanger fan assemblies.

190501-11-00-04 Details

FAQ

1. What rotational speeds is this sensor suitable for?

It is designed for equipment operating at or above ~90 rpm (100–300 rpm typical). If equipment runs significantly slower, you should verify that the sensor’s low‐frequency response covers the application.

2. What signal output does it provide?

Standard sensitivity is approx. 100 mV/in/s (≈3.94 mV/mm/s) ±5%. Some variations mention “200 mV/in/s ±3%” for higher output

versions. If you require a 4–20 mA output variant, check with supplier whether that option exists (

some listings mention “4-20 mA optional”).

3. Can I use this sensor for high-speed rotating machines (e.g., 3600 rpm)?

While the 190501 is tuned for low frequencies typical of slow-speed fans, it still covers up to ~1 kHz frequency

range in some versions. However, for very high‐speed machines it may not be the optimal sensor;

check the standard Velomitor or other models designed for higher rpm.

4. Is a calibration required?

Yes — especially for critical measurements. There are guides for calibrating the 190501 using a

low‐frequency portable vibration calibrator. Calibration helps ensure correct

sensitivity and frequency response, especially at low speeds.
