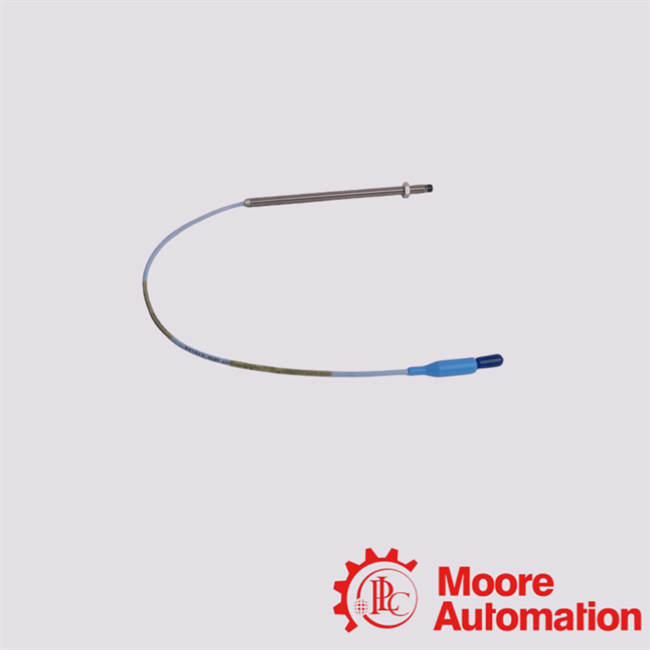

330101-00-77-15-02-00 Bently Nevada Proximity Probe
Description
The 3300 XL 8 mm Proximity Transducer System—including the probe, extension cable, and Proximitor® sensor—provides an output voltage directly proportional to
the distance between the probe tip and a conductive surface. It’s capable of both static (position) and dynamic (vibration) measurements,
commonly used on fluid-film bearing machinery for tasks like vibration analysis, position detection,
Keyphasor® reference, and speed sensing. The 3300 XL 8 mm system is API 670
(4th Edition) compliant for mechanical configuration, linear range,
accuracy, and temperature stability.
330101-00-77-15-02-00 Details
|
FAQ
|
|
Q: Is it compatible with earlier models?
A: Yes. XL components (probe, cable, sensor) are physically and electrically interchangeable with older non-XL 3300-series
5 mm and 8 mm parts. However, mixing XL and non-XL components limits
overall performance to the non-XL specifications .
Q: What’s new with the XL series?
A: Notable enhancements include tool-less ClickLoc connectors, SpringLoc wiring, improved RFI/EMI resilience
for easier installations, and higher build robustness (e.g. CableLoc, TipLoc design) .
Q: Why choose 8 mm probe size?
A: The 8 mm probe offers thicker molded PPS encapsulation for greater mechanical strength. Use it wherever
space permits; choose 5 mm or NSv style only if side-clearance is limited.
Q: What is the installation configuration of the Proximitor Sensor?
A:It fits both DIN-rail and traditional 4-hole panel mounting, with electrical isolation built in—eliminating
the need for separate isolator plates.
|
|
|
|
